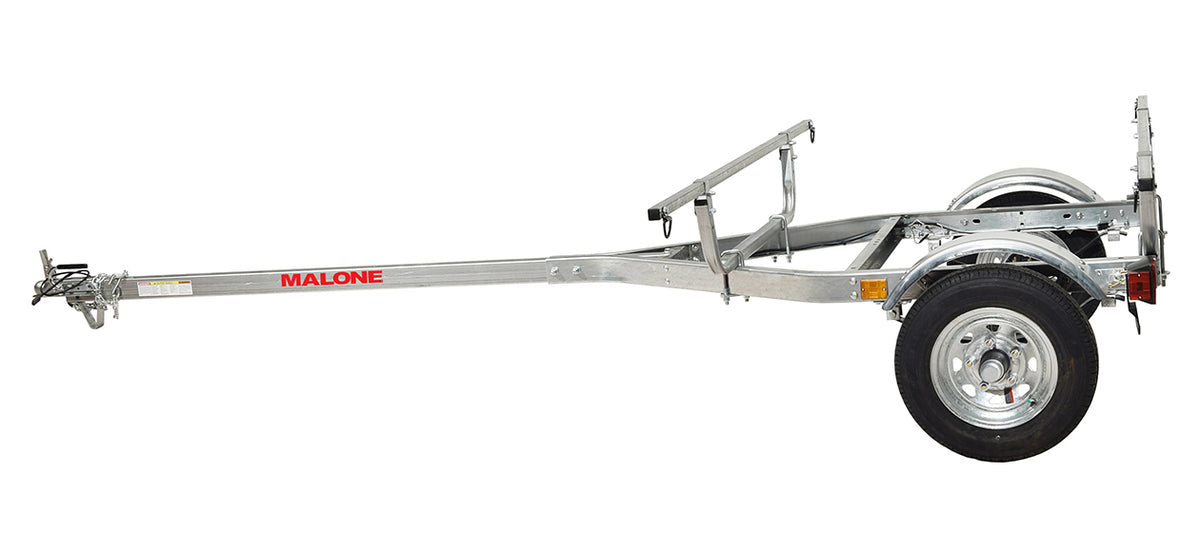

Malone MicroSport Trailer

Description

MicroSport™ Trailer

The MicroSport™ Trailer combines cost-effectiveness, quality craftsmanship, and dependable design for transporting kayaks and canoes.

Each kit includes a sturdy reinforced steel tongue, DOT-approved submersible LED lighting, a pre-wired electrical system, pre-fitted chassis components, 78" steel load bars, and 12" galvanized slotted wheels.

Using common tools, assembly can be completed in approximately 3–4 hours. Backed by a Five-Year Limited Warranty and proudly Made in the USA.

Features

• Pre-assembled hubs for a clean and simple installation

• 12" galvanized wheels with marine-grade sealed bearings

• Reinforced steel tongue can transport boats up to 20' in length

• 78" steel, 1 ¼" square load bars featuring D-ring tie-downs

• 11-gauge pre-galvanized steel construction for years of service

• Plug & Play Submersible LED Light Kit

• Five-Year Limited Warranty

• Made in the USA

Specifications

Load Capacity: 800 lb. / 20' canoe or kayak
Dimensions: 13' 3" (length)
Width (Without Crossbars): 55"
Frame Width Assembled (Width Within Fenders): 40"
Weight (Without Accessories): 197 lb.
Frame: Marine-grade galvanized steel
Hitch: 2" Class II receiver
Required Ball Size for Vehicle Attachment: 2"
Ball Height: 18" from ground to top of ball
Recommended Tire Pressure: 35–40 PSI
Tongue Weight (Unloaded): 25 lb.
Cross Bar Spread (Adjustable): 44"–63"
Height of Cross Bars From Ground: 30"

What’s in the Box

• (2) 12" High-Speed Wheels

• (1) Reinforced Steel Tongue

• DOT-Approved LED Lighting

• Pre-Tested Electrical System

• Pre-Fitted Chassis Components

• (1) Instruction Manual & Registration Documentation

• Assembly Required

• Multi-Boxed Item

• Includes 4 Cartons
