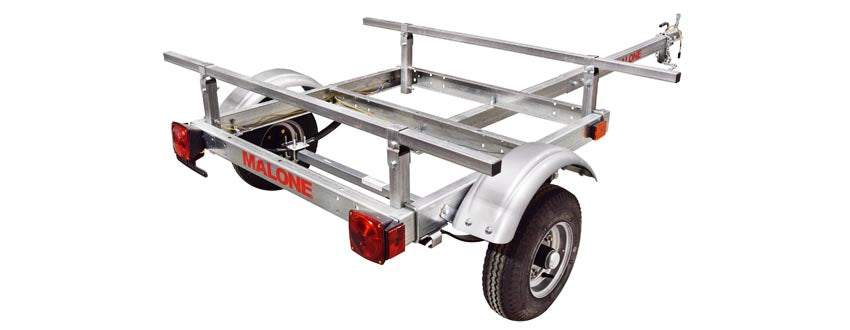

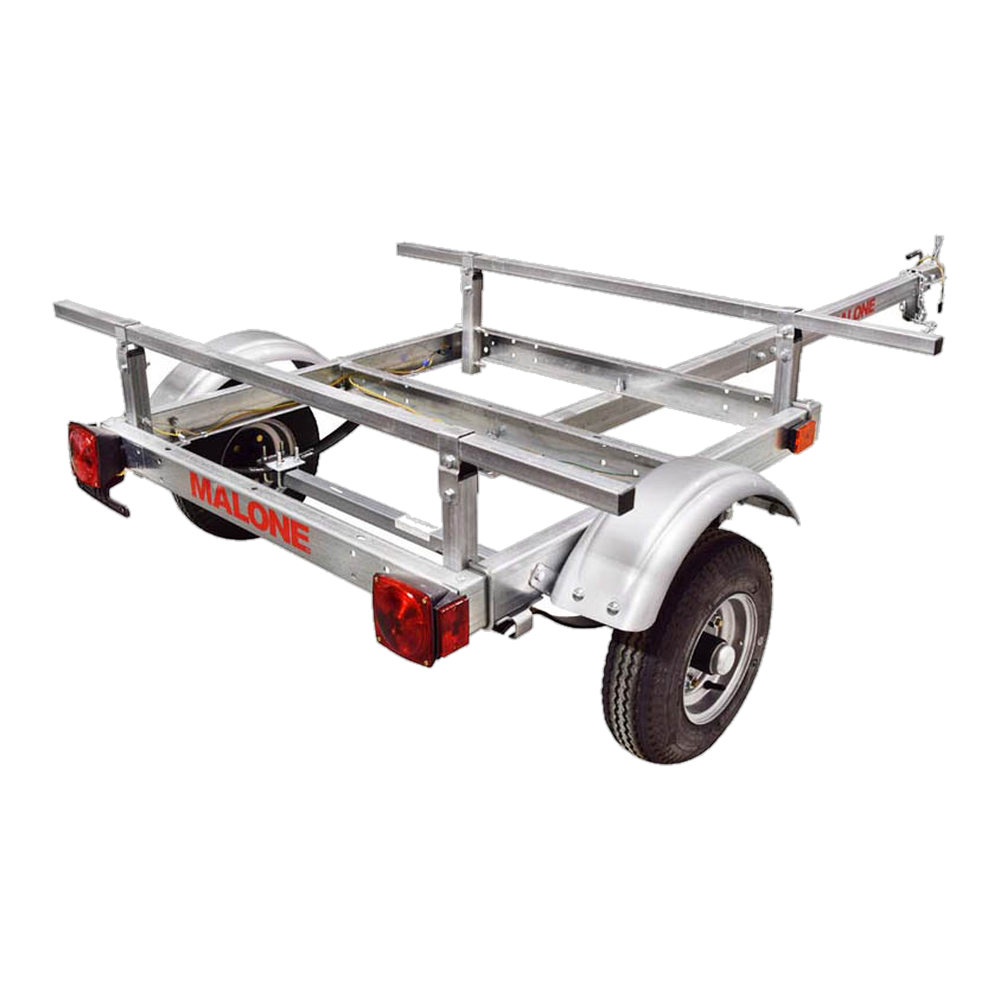

Malone EcoLight Sport Trailer

Description

EcoLight™ Kayak Trailer

The EcoLight™ is an affordable, lightweight kayak trailer proudly designed and built in the USA using high-grade galvanized steel for years of dependable use.

The trailer is rated for speeds up to 65 MPH while transporting loads up to 400 lbs. It features a reinforced extra-long tongue, 58" wide steel load bars, molded fenders, 8" high-speed tires, powder-coated rims, and a 2" receiver with lift handle.

This trailer serves as the base frame for the EcoLight™ Packages and is DOT and Transport Canada certified. All parts and workmanship are backed by a Five-Year Limited Warranty.

Assembly can be completed in approximately 3–5 hours using common shop tools. Detailed assembly instructions are included.

Features

• Marine-grade galvanized frame

• DOT-approved submersible LED lighting

• 8" five-lug high-speed powder-coated wheels

• Injection-molded fenders

• 58" coated steel load bars

• 2-piece extended tongue

• Flat four-wire harness

• Tongue skid plate

• Leaf spring suspension

• Galvanized heavy-duty axle

• Five-Year Limited Warranty

• Made in the USA

Specifications

Width: 58" (55" without crossbars)
Frame Width Assembled (Without Fenders): 40"
Length: 10' 9"
Weight: 145 lb. (without accessories)
Capacity: 400 lb. / 14' canoe or kayak
Frame: Marine-grade galvanized steel
Required Ball Size for Vehicle Attachment: 2"
Ball Height: 14" from ground to top of ball
Wheel Specifications: 8" diameter; rated to 65 MPH
Tire Specifications: 4.80 / 4.00-8", Load Range B (785 lb.)
Recommended Tire Pressure: 40 PSI, 90 PSI max
Tongue Weight (Unloaded): 12 lb.
Cross Bar Spread: 38.5" (fixed)
Height of Cross Bars From Ground: 26"

Installation

• Please note that the trailer load bar support system has been upgraded and some product imagery does not show the change.

• Review instructions and check all parts prior to assembly.

• Register your warranty prior to first use.

What’s in the Box

• (2) Wheels & Tires

• (1) 2-Piece Extended Tongue

• DOT-Approved Lighting & Bearings

• Pre-Tested Electrical System

• Pre-Fitted Chassis Components

• Instruction Manual & Registration Documentation
