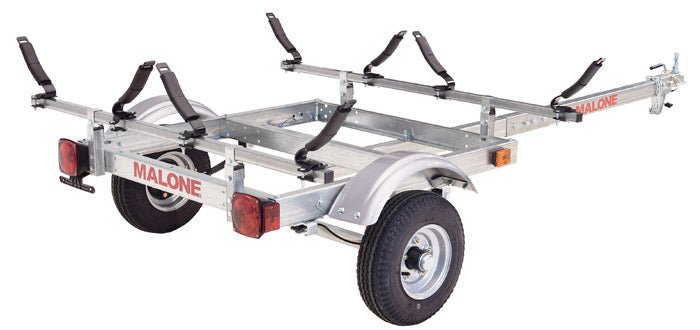

Malone EcoLight 2 Kayak Trailer Package (2 V-Racks)

Description

EcoLight™ 2-Kayak Trailer Package

The EcoLight™ Sport Trailer, bundled with a Malone carrier system, provides a safe and affordable solution for kayak transport.

The MPG586XV EcoLight™ Package is designed to transport two sit-inside or two sit-on-top recreational kayaks. Each trailer includes two sets of padded V-style kayak carriers that work best with traditional V-style hulls and some non-traditional pontoon-style hulls.

Each unit is DOT and Transport Canada certified and proudly Made in the USA for years of dependable use. The trailer is rated for speeds up to 65 MPH while transporting loads up to 400 lbs.

Features include a reinforced extra-long tongue, 58" wide steel load bars, molded fenders, 8" high-speed tires, and a 2" receiver with lift handle. All parts and workmanship are backed by a Five-Year Limited Warranty.

Assembly can be completed in approximately 3–5 hours using common shop tools. Detailed assembly instructions are included.

Features

• Marine-grade galvanized frame

• Padded V-style carriers with mounting hardware and load straps

• DOT-approved submersible LED lighting

• 8" five-lug high-speed powder-coated wheels

• Injection-molded fenders

• 58" coated steel load bars

• 2-piece extended tongue

• Flat four-wire harness

• Tongue skid plate

• Leaf spring suspension

• Galvanized heavy-duty axle

• Five-Year Limited Warranty

• Made in the USA

Specifications

Width: 58" (55" without crossbars)
Frame Width Assembled (Without Fenders): 40"
Length: 10' 9"
Weight: 145 lb. (without accessories)
Capacity: 400 lb. / 14' canoe or kayak
Frame: Marine-grade galvanized steel
Required Ball Size for Vehicle Attachment: 2"
Ball Height: 14" from ground to top of ball
Wheel Specifications: 8" diameter; rated to 65 MPH
Tire Specifications: 4.80 / 4.00-8", Load Range B (785 lb.)
Recommended Tire Pressure: 40 PSI, 90 PSI max
Tongue Weight (Unloaded): 12 lb.
Cross Bar Spread: 38.5" (fixed)
Height of Cross Bars From Ground: 26"

Installation

• Please note that the trailer load bar support system has been upgraded and some product imagery does not show the change.

• Review instructions and check all parts prior to assembly.

• Register your warranty prior to first use.

• Note: The kayak carriers included with this package are designed for trailer use only. Do not attempt to mount these carriers to any vehicle rooftop.

What’s in the Box

• (2) Wheels & Tires

• (2) V-Style Kayak Carriers with Hardware and Load Straps

• (1) 2-Piece Extended Tongue

• DOT-Approved Lighting & Bearings

• Pre-Tested Electrical System

• Pre-Fitted Chassis Components

• Instruction Manuals & Registration Documentation
