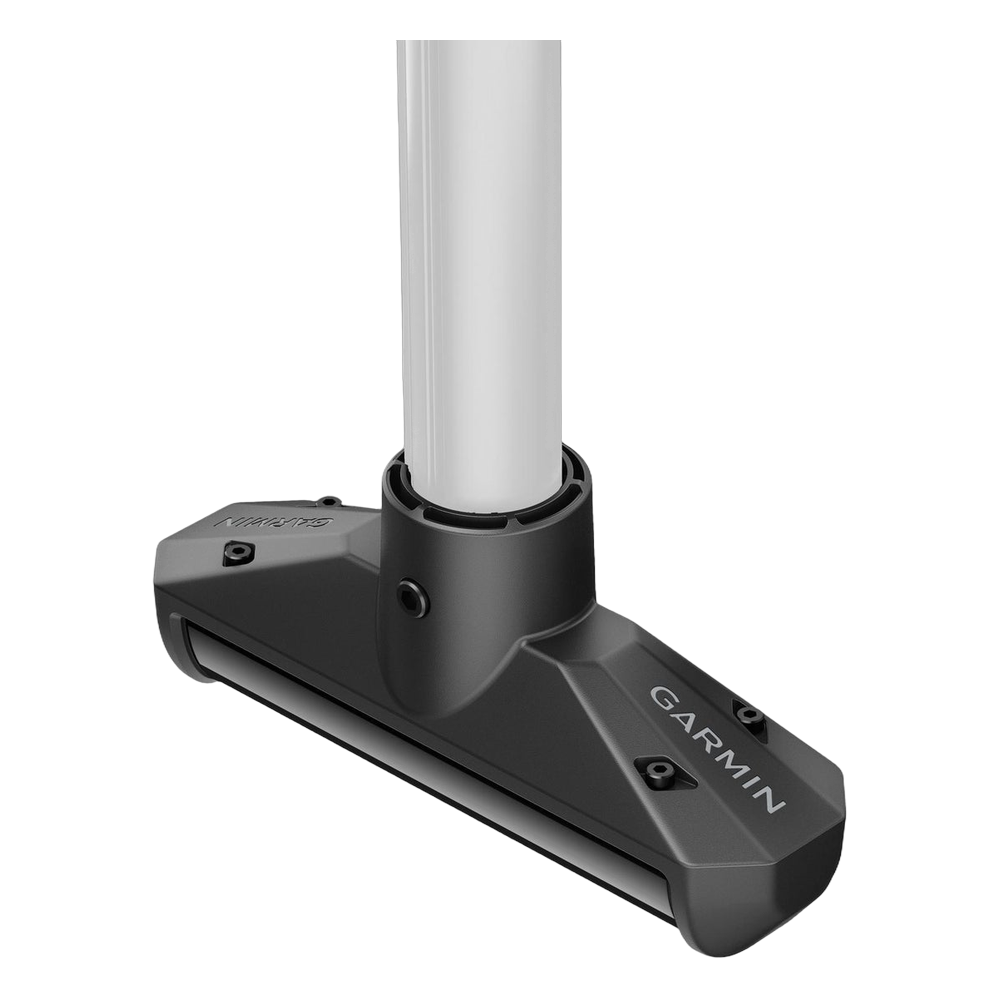

Garmin GT360UHD Transducer

Description

See the underwater world like never before with the Garmin GT360UHD Transducer. Mount it on the Garmin Spy Pole (sold separately) to capture OneVu sonar: 360 degrees of bird's-eye imagery around your boat in 2D and 3D views, so you can fish an area without constantly rescanning. GT360UHD integrates with GPS through True Motion technology, so your scans stay true to location as your boat moves. Combine it with your Garmin LiveScope transducer to overlay live sonar onto the imagery for an all-new 3D view.

Key Features

• 360-degree OneVu sonar - crisp, clear 360-degree underwater imagery in 2D or 3D views.
• Large coverage area - scan and store up to a football-field size of imagery in a single power cycle.
• Chartplotter integration - change scanning modes, adjust sonar frequencies and select color palettes from your compatible Garmin chartplotter.
• Simple installation - mount onto your Spy Pole and run your cables through the shaft.
• Enhanced OneVu experience - layer LiveScope live sonar over OneVu imagery in 3D, plus a beam overlay showing where LiveScope is pointed in 2D mode.
• Multiple scanning modes - auto, manual or constant scan.

Specifications

• Frequencies: OneVu/SideVu 455 kHz, 800 kHz, 1,070 kHz
• Power: 500 watts
• Max range: 500' (455 kHz), 200' (1 MHz)
• Cable length: 20.3'
• Depth and temperature sensing
• 12-pin connector
• Dimensions with mount: 8.5" x 2.3" x 3.8"

In the Box

• GT360UHD 12-pin transducer
• Transducer mount for Spy Pole
• LiveScope adjustable perspective shaft mount
• Dogbone stabilizer
• Mounting hardware and documentation
