Eternal Lithium Dual Purpose Battery 12v 100Ah

Description

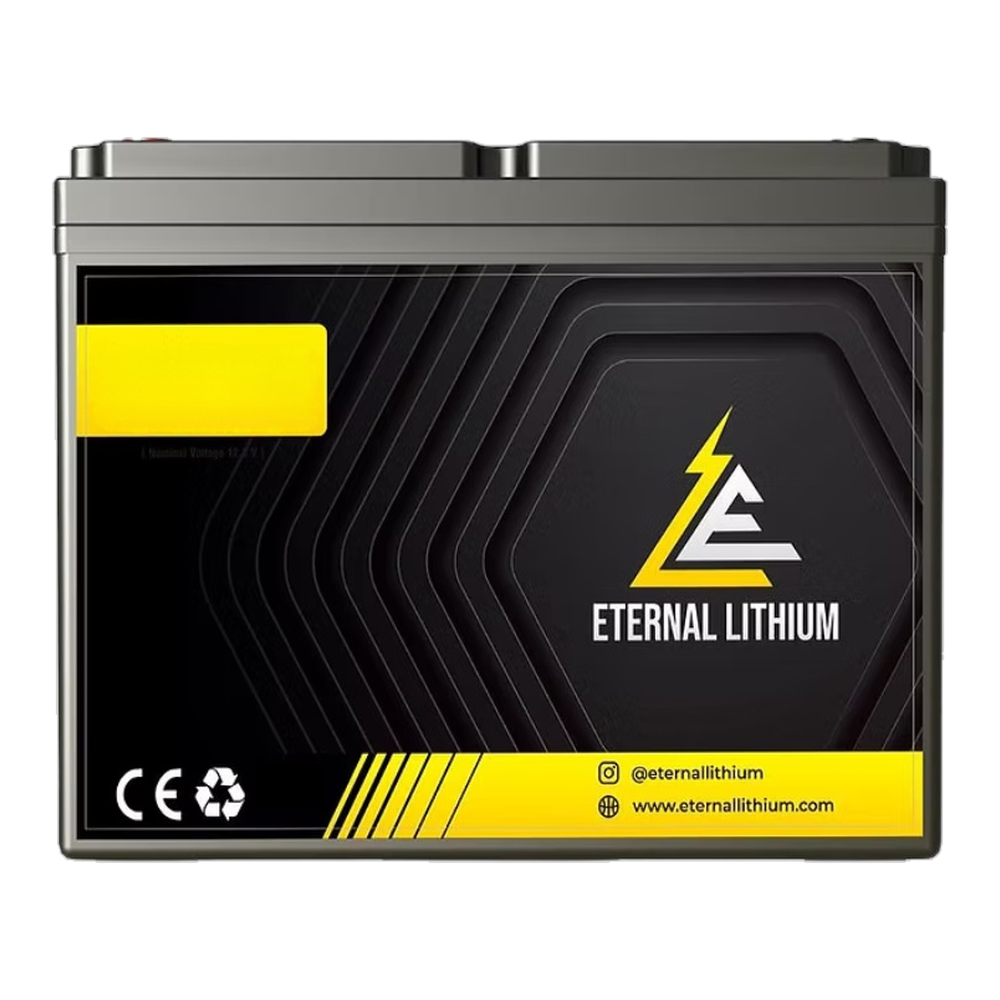

The Eternal Lithium Dual Purpose Battery 12V 100Ah provides strong starting power with 1200 CCA and reliable energy for your electronics. It’s lightweight at just 25 pounds—much lighter than traditional batteries—and lets you camp and fish for days. Monitor battery status easily with a Bluetooth app on your phone. Depend on this battery for lasting, efficient power on the water.

12yr Warranty!

Dimensions

length 12.92’’
width 6.78’’
height 8.75’’

Weight

25 Pounds

Specs

Lithium Iron Phosphate (LiFePo4)

Water Dust Resistance: IP67

Capacity 100Ah

Nominal Voltage 12.8 Volts

Full Charge Resting Voltage 13.32 Volts

Energy Storage 2432Wh (2.432KWh)

1200 CCA's

Run time @ 25Amp load 5.4 Hours @ 77°F (25°C)

Self Discharge Rate ≤4%/Month

Charging

Charging Temperate Range 24~131°F

Charge Method CC/CV
Absorb Voltage(CC) 14.0 to 14.4 Volts

Maximum Current 135Amps @ 77°F (25°C)

Recommended Current 100Amps

Recommended CV Time 15 minutes

Charge Efficiency 99%

Can run up to 4 in series or paralell

Discharging

Discharging Temperate Range -4° ~ 140°F (-20°C- 60°C)

Discharge Current 30Amps

Continuous Discharge Current 3 seconds <90Amps
Discharge Cut-off Voltage 10Volts; Any cell (2.5 Volts)

Recommended Low Voltage Disconnect 12.0 Volts

Short Circuit Protection 2000A for 250μS
Short Circuit Protection Release - Disconnect the load

Discharge Test - 100% DoD @ 1C

Discharge Test Results - >6000 cycles ~ 80% remaining Capactiy

Storage Temperature Range(Recommended) -4°F ~ 95°F (-20°C - 35°C)

Battery Protection

BMS Control PCM
Over Voltage, per Cell, Open 3.95 Volts ± 0.03 Volts (15.5V)
Over Voltage, per Cell, Release 3.75 Volts ± 0.05 Volts (15.0V)

Over Discharge, per Cell, Open 2.50 Volts ± 0.05 Volts (10.0V)

Over Discharge, per Cell, Release  2.70 Volts ± 0.05 Volts (10.8V)

Over Current 675Amps 5mS
Over Current Release Disconnect the charger or load
Over Temperature 140°F (60°C)
Over Temperature Release 122°F (50°C)
Low Temperature Charge, Open 24°F

Low Temperature Charge, Release 32°F

MOSFET Over Temperature, Open 194°F

MOSFET Over Temperature, Release 158°F
