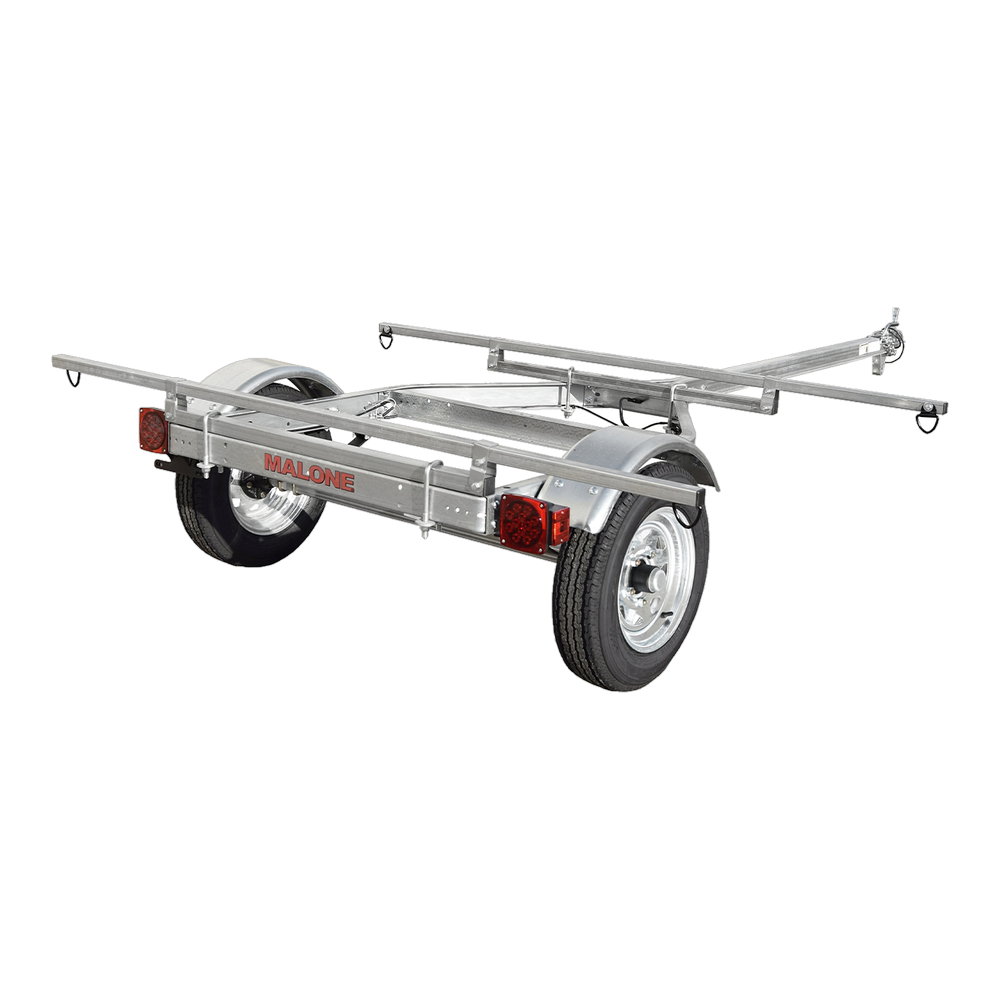

Malone MicroSport Low Bed Trailer

$2,195.10 USD
$2,195.10 USD $2,439.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

MicroSport™ LowBed™ Trailer

The MicroSport™ LowBed™ is a modified version of the MicroSport™ Base Trailer, designed to make loading and unloading heavy kayaks and gear easier.

The redesigned load bar support system lowers the crossbar height to just 22" from the ground, providing easier and safer access when loading larger or heavier kayaks.

The marine-grade galvanized trailer can also be backed down a boat ramp, allowing kayaks to be launched directly into the water. It features submersible LED lighting and 78" load bars with room for up to six kayaks when properly equipped with compatible carriers.

The trailer has an 800 lb. load capacity and is DOT and Transport Canada approved. Assembly can be completed in approximately 3–4 hours using standard tools. Backed by a Five-Year Limited Warranty and proudly Made in the USA.

Features

  • Low 22" crossbar height for easier loading and unloading

  • Pre-assembled hubs for a clean and simple installation

  • 12" galvanized wheels with marine-grade sealed bearings

  • Reinforced steel tongue can transport boats up to 20' in length

  • 78" steel, 1 ¼" square load bars featuring D-ring tie-downs

  • 11-gauge pre-galvanized steel construction for years of service

  • Submersible LED lighting

  • DOT and Transport Canada approved

  • Made in the USA

  • Five-Year Limited Warranty

Specifications

Load Capacity: 800 lb. / 20' canoe or kayak
Length: 159"
Width (Without Crossbars): 55"
Width (With Crossbars): 78"
Frame Width Assembled (Within Fenders): 40"
Height of Cross Bars From Ground: 22"
Top of Ball Height: 18" from ground
Weight (Without Accessories): 197 lb.
Frame: Marine-grade galvanized steel
Hitch: 2" Class II receiver
Required Ball Size for Vehicle Attachment: 2"
Recommended Tire Pressure: 35–40 PSI
Tongue Weight (Unloaded): 25 lb.
Cross Bar Spread (Adjustable): 44"–63"

What’s in the Box

  • (2) 12" High-Speed Wheels

  • (1) Reinforced Steel Tongue

  • DOT-Approved LED Lighting

  • Pre-Tested Electrical System

  • Pre-Fitted Chassis Components

  • (1) Instruction Manual & Registration Documentation

  • Total Shipment: 4 Cartons
